CMT-900 cutter
Technical Information
| Specification | Details |
|---|---|
| Processable materials | Woven and non-woven textiles, natural and synthetic fibers |
| Working width | 900 mm |
| Cutting length | Adjustable from 10 to 100 mm |
| Rotation speed | 150–240 rpm |
| Cutting speed range | 300 to 480 cuts/min |
| Production rate | Up to 3,000 kg/h (depending on material) |
| Installed power | 22 kW (cutting head), plus motors for feeding and conveyors |
| Air consumption | 1 m³/hour at 6 atmospheres |
Machine Description
The CMT-900 is a high-capacity rotary cutter designed for precise and uniform size reduction of textile waste prior to fiber processing. Its smart dual-rotary configuration and reinforced feeding system deliver clean, uniform cuts across a wide range of materials, from woven fabrics to post-consumer garments with minimal maintenance downtime.

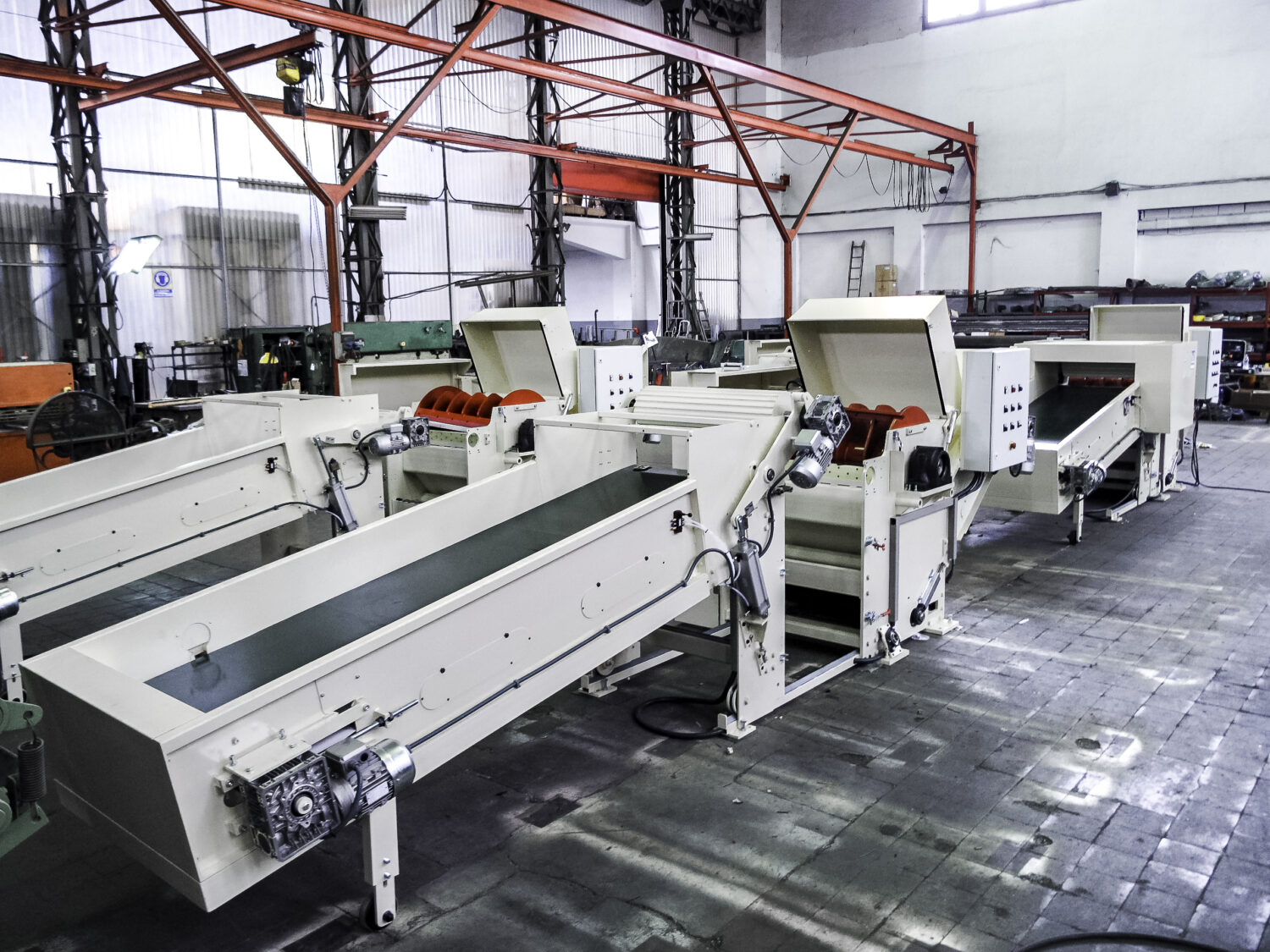

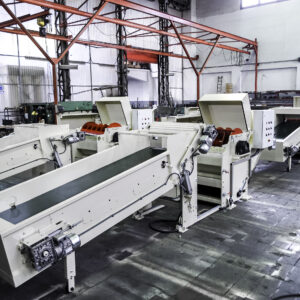

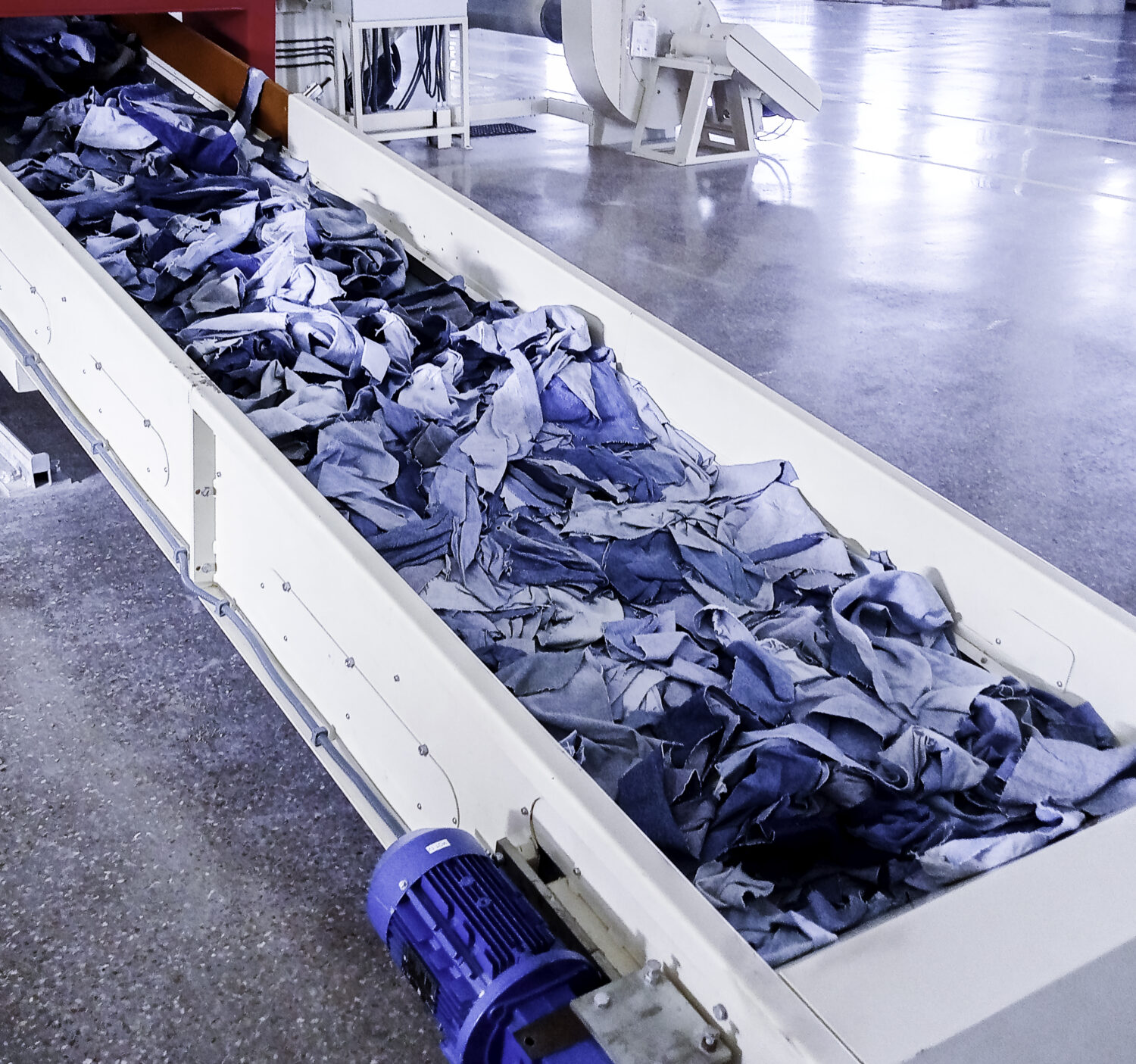

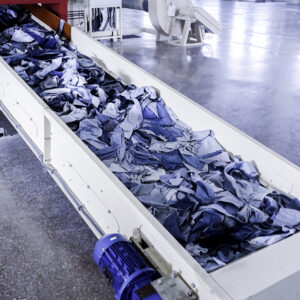

Featuring a long feed conveyor and a big diameter fluted steel feed roller with pneumatic pressure, it ensures smooth and consistent feeding of materials. The rotary cutter head includes two knives and scissors cutting for clean cuts, while the feeding section moves on guide rails for easy maintenance access.

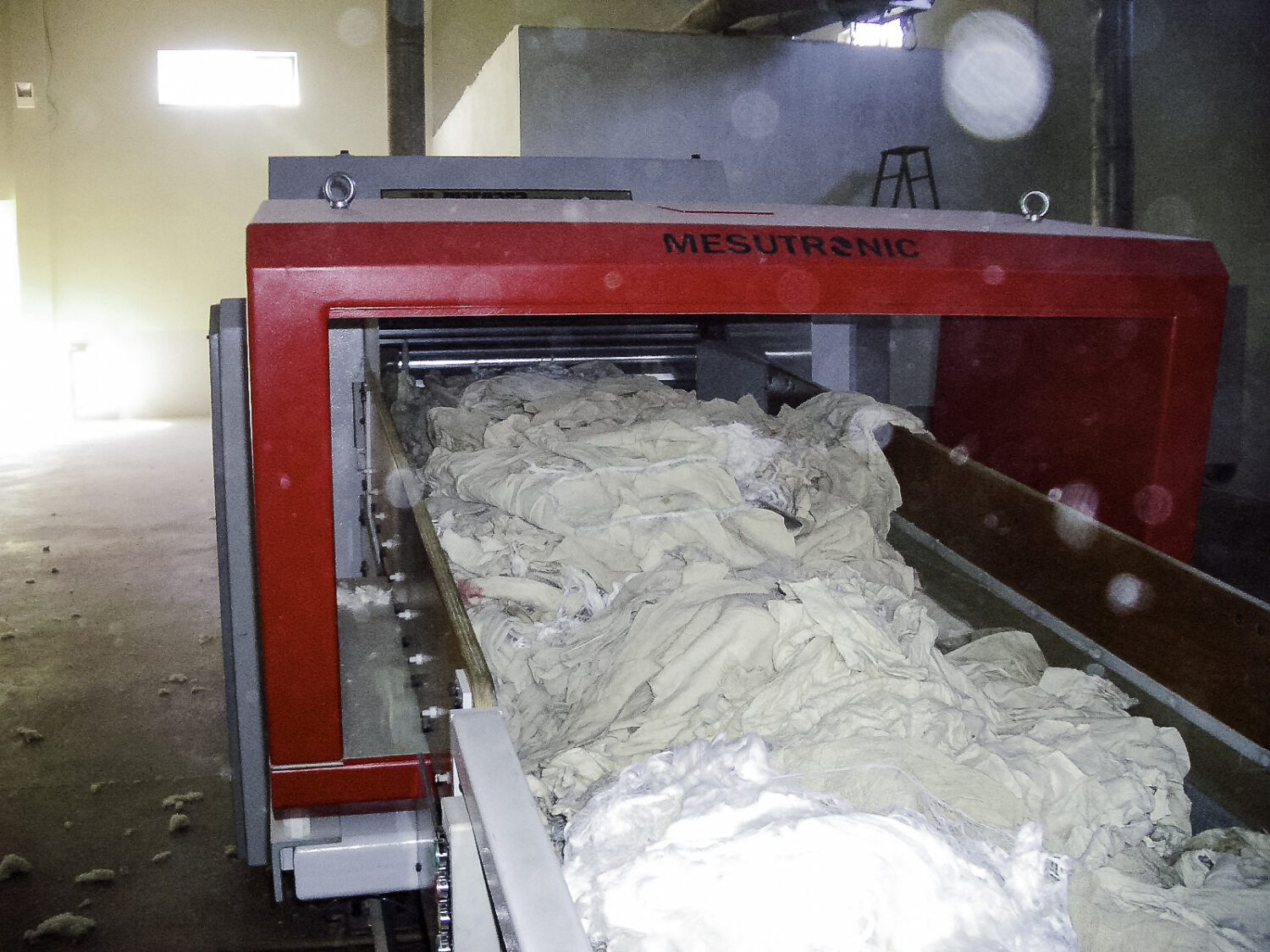

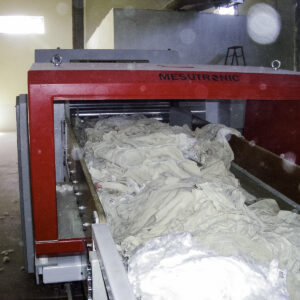

An inclined delivery apron with transversal plastic strips facilitates material discharge. Optional metal detection can be integrated into the feed apron for enhanced safety. This robust machine offers efficient cutting performance and easy integration into recycling lines.
Machine Diagram
