Rag Tearing machines
Technical Information
| Specification |
Details |
| Category |
Rag Tearing |
| Working width |
1200 mm |
| Production capacity |
Up to 250 kg/h |
| Installed power |
30 kW |
| Installation options |
- End of recycling line (post-tearing)
- Spinning preparation (pre-carding)
|
Machine Description

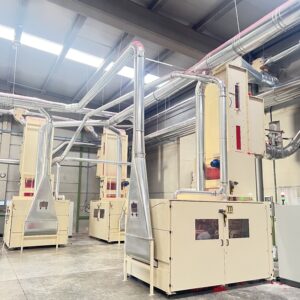

The AVANT-CARD 1200 is a precision secondary opener engineered for the delicate reprocessing of partially opened material from Rag Tearing machines.
Material is introduced through a compacting-wall loader that forms a consistent web, which is then processed by a dedicated infeed system for optimal separation. The internal opening mechanism uses a high-efficiency drum with multiple opening rollers to fully individualize fiber tufts, progressively separating remaining thread residues and clusters. A selective rejection system discards insufficiently opened fragments, ensuring only clean, high-quality fiber advances in the process. The machine integrates a speed-based fiber take-off system, followed by pneumatic extraction toward the next stage. An internal bypass mechanism allows for flexible routing of material either to preparatory lines or directly to the baling press, depending on process requirements.
All drive components are managed via frequency inverters to ensure optimal speed control and material handling. Easy-access panels and fast roller mounting systems simplify maintenance, while integrated suction ensures effective removal of dust and microfibres.
Designed for both efficiency and fiber quality, the AVANT-CARD enables production of finer yarns with lower percentage of reinforcing fiber, reduced carding losses, and improved blending performance when installed upstream of carding machines.
Machine Diagram
