CA Automatic Blending Boxes
Blending and mixing
Technical Information
| Specification | Details |
|---|---|
| Working dimensions | Length: from 3,000 to 10,000 mm Width: from 2,000 to 4,000 mm Height inside: 3,200 mm |
| Total installed power (two boxes) | 16 kW |
| Air handling | 7.5 kW fan with filtration system |
| Unloading | Pinned conveyor with rubber stripper cylinder |
Machine Description

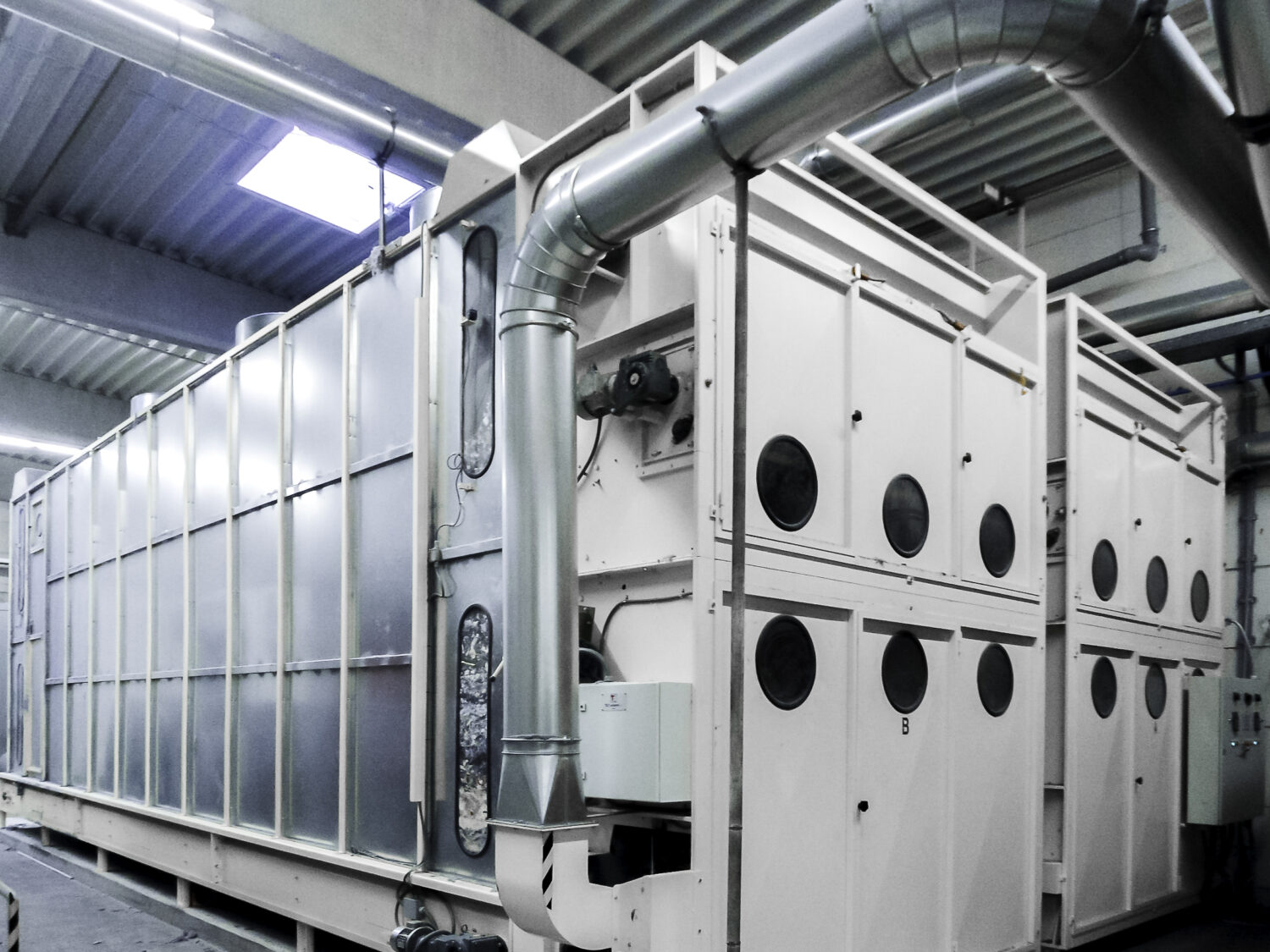

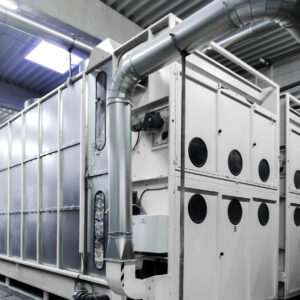

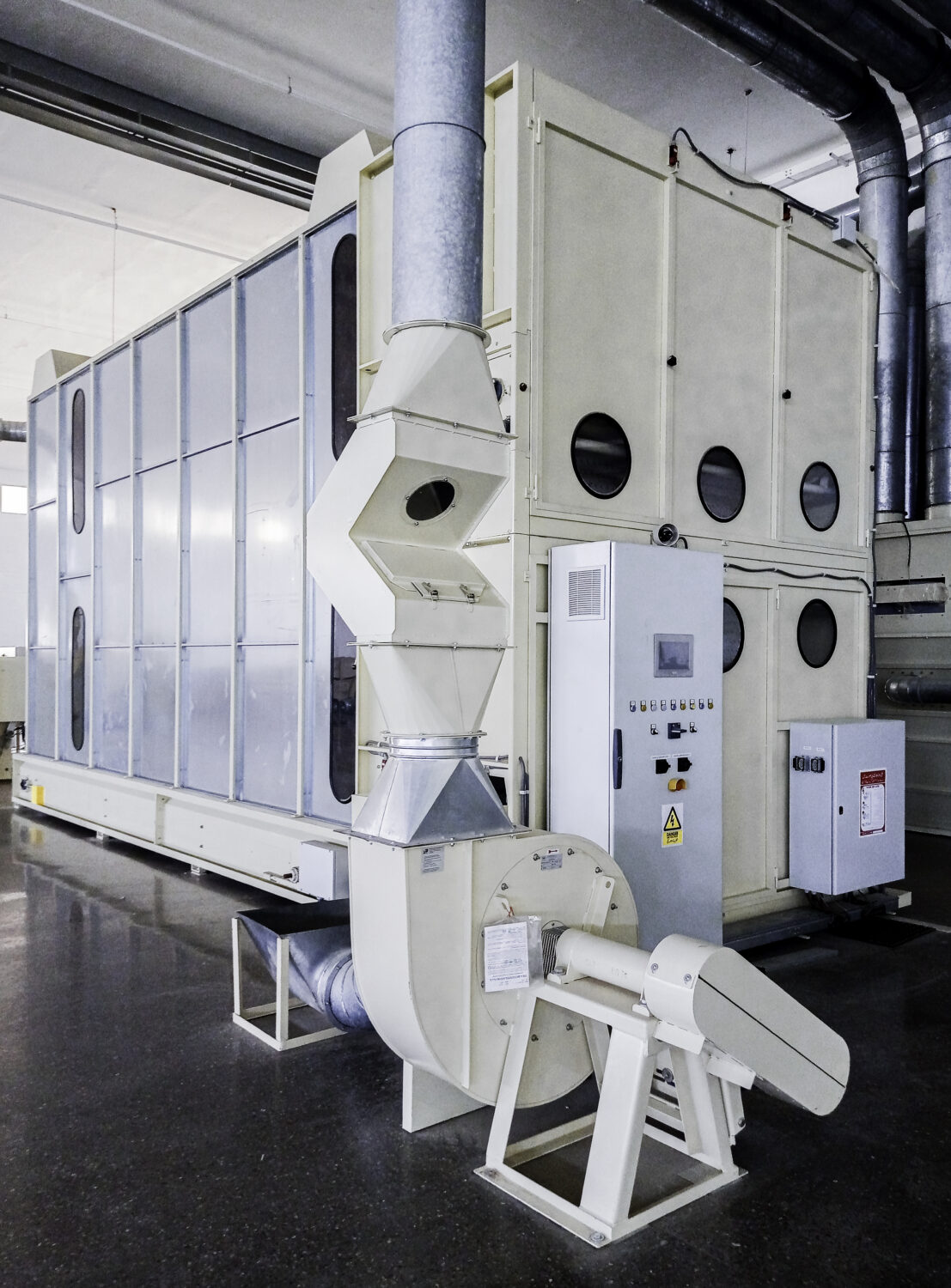

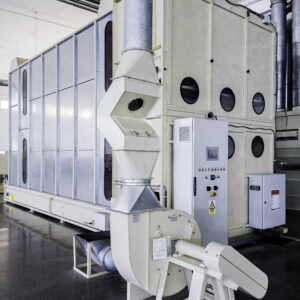

The CA 3070 Automatic Blending Boxes are robust mixing units designed to homogenize rags and textile by-products in high-capacity recycling lines. Equipped with vertical lattices with pins and front conveyor delivery systems, these blending rooms ensure uniform material discharge.
The feeding group is powered by a rotary distributor with gearbox drive for consistent blending. Exhaust air is extracted through a dedicated fan and filtration system to maintain environmental and operational cleanliness.
Machine Diagram
